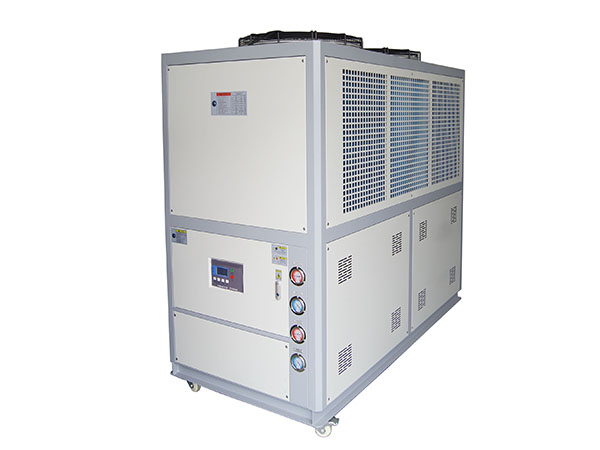

防腐冷水机

    防腐冷水机多用于电镀液、阳极氧化液冷却,由于原液有腐蚀性,所以冷水机的交换器需选用耐腐蚀钛管及不锈钢材质。 电镀液冷却分直冷式和间接冷却式,直接冷却是选用钛质盘管式蒸发器直接侵入槽体,通过蒸发器中冷媒媒介给电镀液降温,不锈钢防腐水泵循环电镀液达到循环制冷。 间接冷却是选用板换式蒸发器,经由防腐换热器,一边循环冰水一边循环电镀液,达到循环冷却功能。
  • 产品概述
机组特点

◆ 温度范围5℃~-60℃

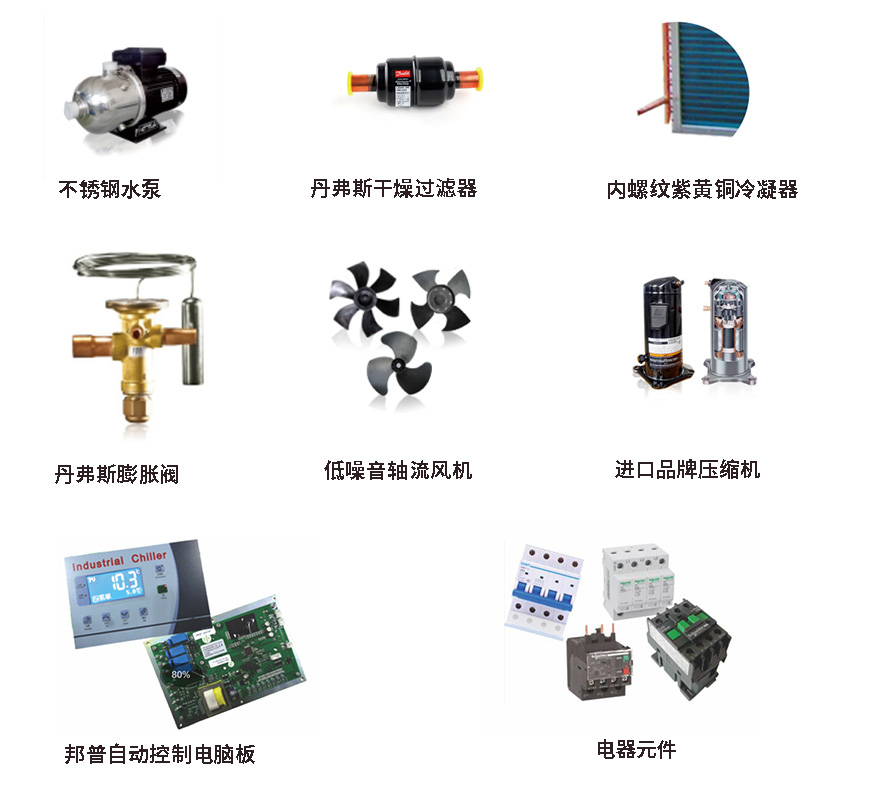

◆ 选用进口知名品牌压缩机,如比泽尔、谷轮、西门子、丹佛斯等采用单级或双级压缩机
◆ 采用单级、双级或复叠式制冷系统
◆ 采用无泵式内建压差供油润滑系统,节能,高效、靠谱
◆ 选用国际著名品牌的热力膨胀阀,电磁阀,单向阀等控制元件,确保机组在宽广的使用工况范围内高效靠谱的工作
◆ 低温工况下配备液态冷媒喷射系统,有效降低关键部件的工作负荷和排气温度,压缩机的工作靠谱性具有热气旁通,能量调节等功能以及完备的自动保护(过压、过温、过载、反转等)
◆ 大型系统采用开启式螺杆式压缩机,运动部件少,轴承使用寿命长,中小型系统采单级半封闭活塞式压缩机或双级螺杆式压缩机压缩机在最小负荷下采用星三角降压启动,有效地降低了启动电流及对电网的冲击
◆ 产品经整体的检测和满负荷运行试验合格后带冷媒出厂,确保设备在水、电到位后开机即可工作。

◆ Temperature range 5℃~-60℃
◆ Use imported well-known brand compressors, such as BITZER, Copeland, Siemens, Danfoss, etc. Use single-stage or double-stage compressors
◆ Adopt single-stage, double-stage or cascade refrigeration system
◆ Use pump-less built-in differential pressure lubrication system, energy saving, high efficiency and reliability
◆ Use internationally famous brands of thermal expansion valve, solenoid valve, one-way valve and other control components to ensure the unit to work efficiently and reliably in a wide range of operating conditions
◆ Equipped with a liquid refrigerant injection system under low temperature conditions, which can effectively reduce the work load and exhaust temperature of key components. The compressor’s working reliability has functions such as hot gas bypass, energy adjustment, and complete automatic protection (overpressure, over Overload, reverse, etc.)
◆ Large-scale systems use open-type screw compressors, which have fewer moving parts and long bearing life. Small and medium-sized systems use single-stage semi-hermetic piston compressors or two-stage screw compressors. The compressor uses star-delta pressure reduction under minimum load. Starting, effectively reducing the starting current and the impact on the grid
◆ The product is fully inspected and passed the full-load operation test before leaving the factory with refrigerant to ensure that the equipment can work when the water and electricity are in place.
